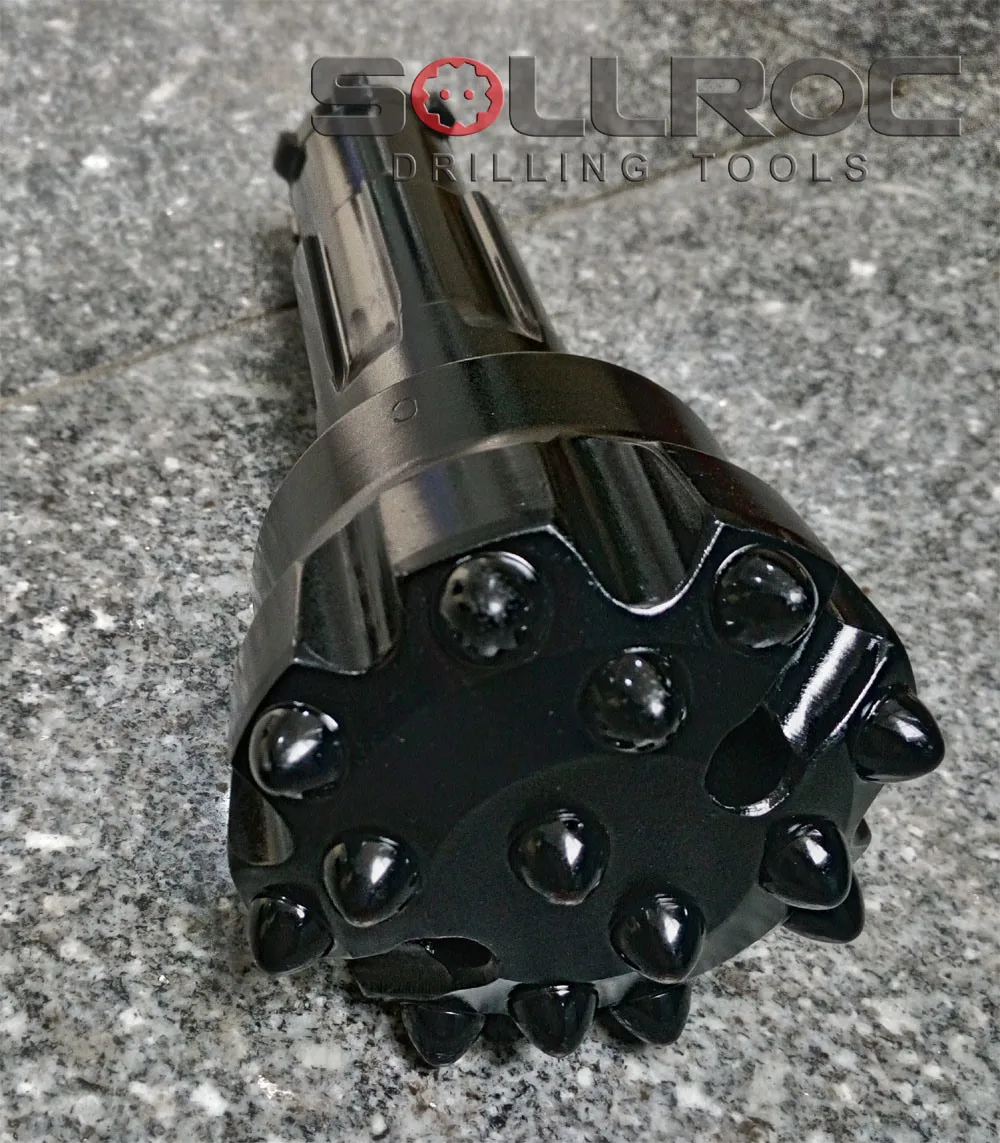

SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

Changsha Sollroc Engineering Equipments Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

Place of Origin : Hunan, China

Brand Name : SOLLROC

MOQ : 1

Price : $200

Weight : 19.3 KG

Material : Carburizedsteel

Processing Type : Forging

Size : 5 3/8''-5 3/4''

Diameter : 136mm-146mm

Air Pressure : High Air Pressure

Gauge Buttons : 8x16

Front Buttons : 6x16+3x14

Button Angle : 35

Flushing Holes : 2

Shroud Diameter : 134-144mm

Weight Range : 18.2-19.2kgs

Part No : SRC54-136 to SRC54-146

Formation Type : Complicated gravel formation

Package Type : Ply-wooden

Contact Now

SRC54 rc bit for Reverse Circulation drilling

SRC54 rc bit for Reverse Circulation drilling

Product Description

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Technical parameters

Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight (kgs) Part No
mm inch Gauge Buttons Front Buttons
136 5 3/8 8x16 6x16+3x14 35 2 134 18.2 SRC54-136
140 5 1/2 8x16 6x16+3x14 35 2 138 18.5 SRC54-140
143 5 5/8 8x16 6x16+3x14 35 2 141 18.8 SRC54-143
146 5 3/4 8x16 6x16+3x14 35 2 144 19.2 SRC54-146
Product Features

Cuttings discharge often used for exploratory mineral sampling or just to route waste for easy hauling

Exhaust side check valves and water flow via the cuttings path lead to less drowning out of the hammer

No need for expensive and environmentally regulated lubricating foams for deeper jobs

Sollroc’s RC Down Hole Hammers allow easy access to key parts making them faster and easier to maintain

Lower drilling friction causes less wear, making tooling and buttons last longer

Uses less air and can take out bigger, heavier, rocks

Reduces the chances of rocks falling in the hole and getting the bit, hammer, or casing stuck

Drills more sensitize formations with less chance of borehole wall cave-in

Control of cuttings exhaust means less mess, a smaller affected area, less dust, and allows drilling in public places

Images

SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

Shipping & Package

Shipping

By Air, By Sea or By express.

Package

Ply - wooden cases + Pallet
