10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

Place of Origin : Hunan, China

Brand Name : SOLLROC

MOQ : 1

Price : $1,000

Weight : 88.4 KG

Material : carburized steel

Processing Type : heat treatment and machining process

Diameter : 254mm to 330mm

Air Compressor : High air pressure DTH bits

Bit Dia. : 254mm, 305mm, 311mm, 318mm, 330mm

Air Holes : 3, 4

Gauge Buttons : 12×φ18, 16×φ18, 14×φ18

Front Buttons : 20×φ16, 36×φ18, 38×φ16, 42×φ16

Part No. : SD10-254, SD10-305, SD10-311, SD10-318, SD10-330, N100-254, N100-305, N100-311, N100-318, N100-330

Bit Face Shape : Concave Face, Convex Face, Flat Face

Shank No. : SD10, N100

Delivery Time : 15-25 days

Package : Ply - wooden cases + Pallet

Shipping Method : By Air, By Sea, By express

Contact Now

Technical parameters

For 10" hammer
DTH bits shank		 Bit Dia. Air Holes
No.		 Gauge
Buttons		 Front
Buttons		 Weight
(Kg)		 Part No.
mm inch
SD10
 254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
N100
 254 10" 3 12×φ18 20×φ16 90.0 N100-254
305 12" 4 12×φ18 36×φ18 102.0 N100-305
311 12 1/4" 4 12×φ18 36×φ16 104.0 N100-311
318 12 1/2" 4 12×φ18 38×φ16 106.0 N100-318
330 13" 4 14×φ18 42×φ16 112.0 N100-330

Delivery time

Usually it needs 15-25 days,3-5days if have stock.

Product Features

Bit face shape selection:

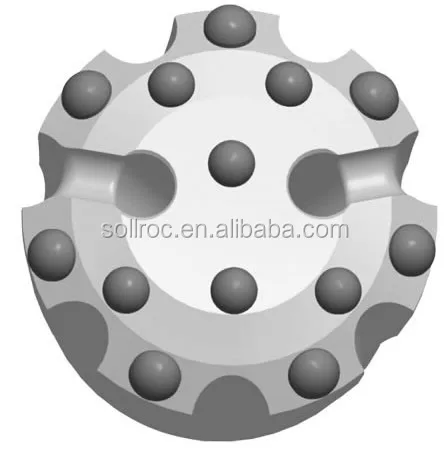

1. Concave Face

The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

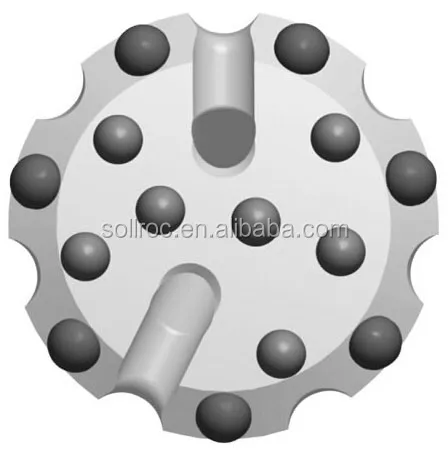

2. Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

3. Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

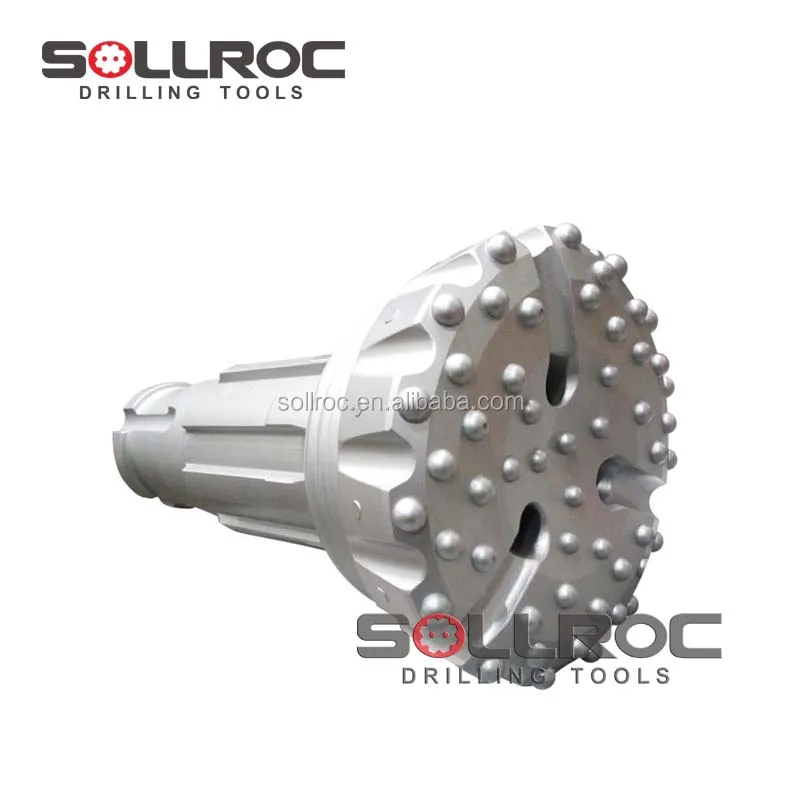

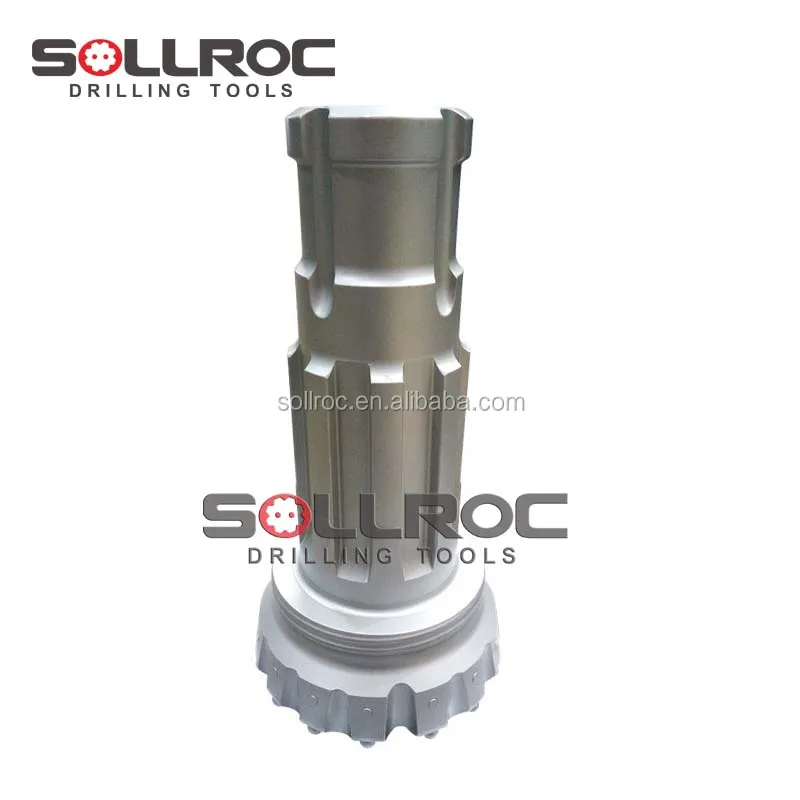

Images

10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter 10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

Shipping & Package

Shipping

By Air, By Sea or By express.

Package

Ply - wooden cases + Pallet

10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter 10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter
