4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit

Name: 4120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit
Brand: SOLLROC
Price: 120 USD

Cheap 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit for sale

Place of Origin : Hunan, China

Brand Name : SOLLROC

MOQ : 1

Price : $120

Bit diameter : 4 3/4''

Flushing holes : 2 * 18

Gauge buttons : 8*14

Front buttons : 7*13

Weight : 8.8 Kg

Material : carburized steel

Processing type : heat treatment and machining process

Formation : Medium Hard Formation

Air compressor : High air pressure DTH bits

Bit face shape : Concave Face, Convex Face, Flat Face

Button diameter : 18mm, 14mm, 13mm

Machine type : Drilling Tool

Use : Well Drilling

Type : DRILL BIT

Contact Now

Technical parameters

Bit diameter

Flushing holes

No.*Button Dia.mm

Weight

(Kg)

inch

Gauge Buttons

Front Buttons

120

4 3/4''

2 * 18

8*14

7*13

8.8

Product Description

sollroc DTH bits are designed and manufactured for superior penetration while maintaining maximum cleaning action at the face of the bit, thus extending the working life of the products. They are manufactured utilizing premium aircraft quality alloy steels coupled with sollroc's proprietary manufacturing and metal tretment proccesses, which allow for the longest possible product life.

Images

Product Features

Bit face shape selection:

1. Concave Face

The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

2. Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

3. Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

Shipping & Package

Shipping

By Air, By Sea or By express.

Package

Ply - wooden cases + Pallet

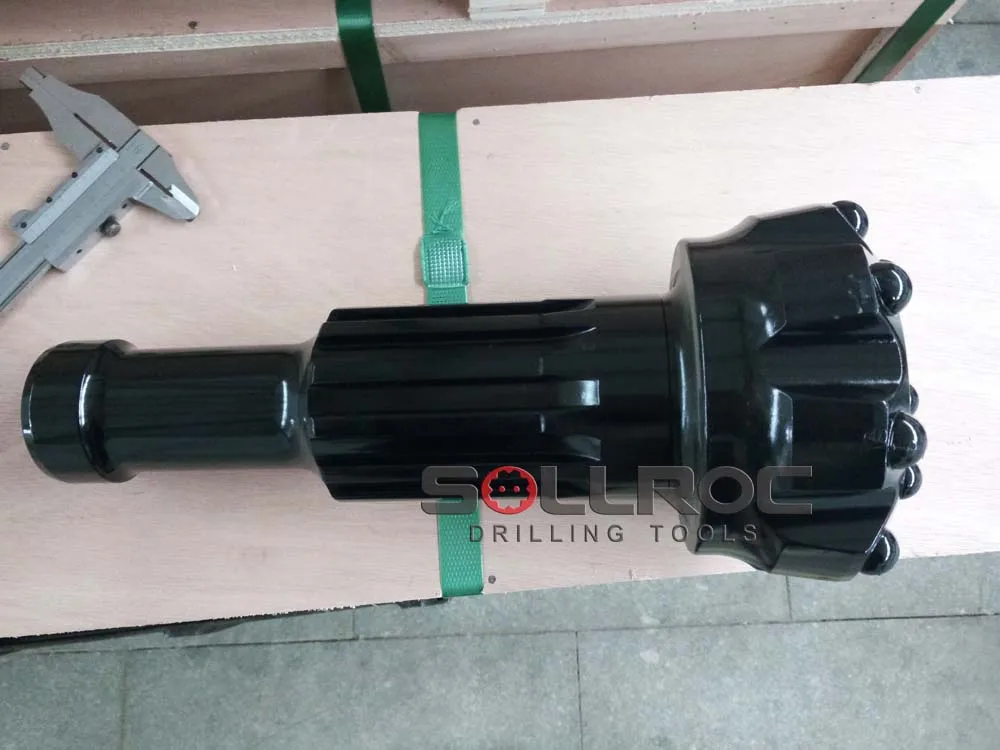

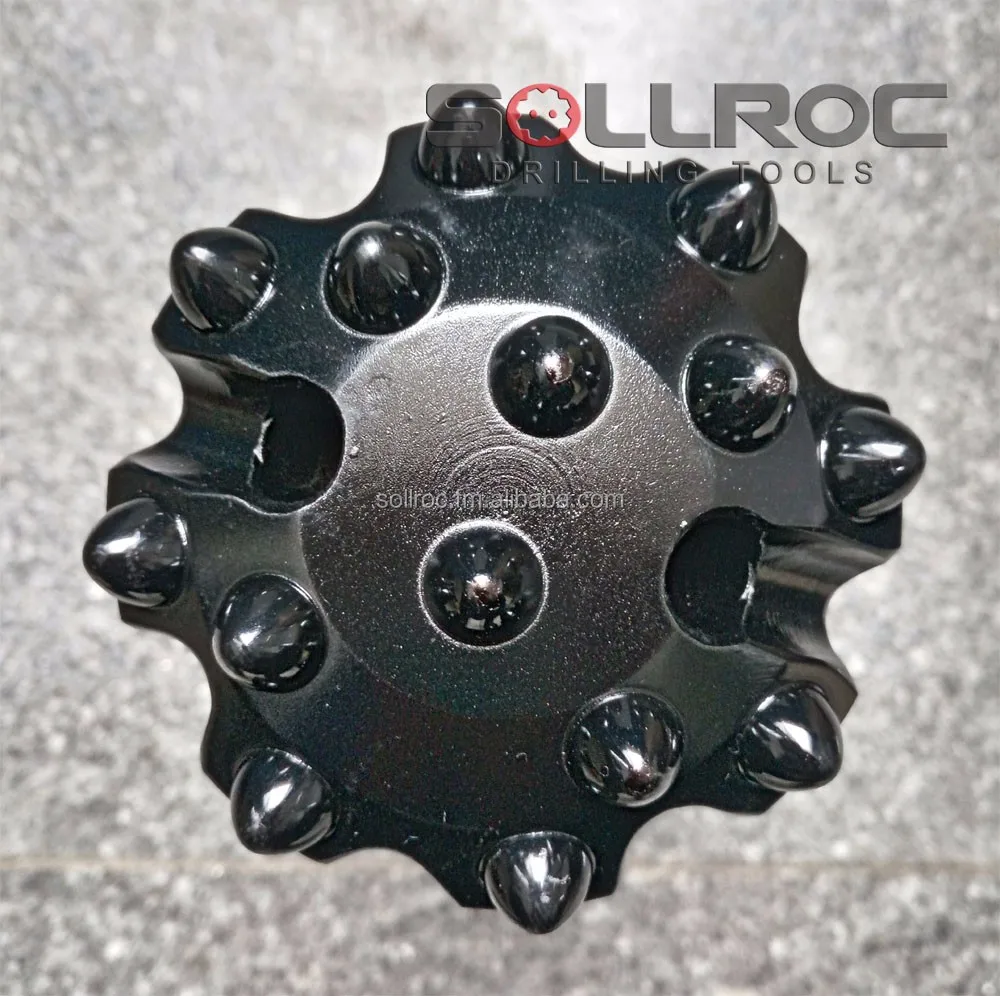

4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit Images
